Several budget-friendly AMD-supported motherboards are populating the market. But ASRock B550M-C may be an ideal choice if you are looking for a budget-friendly yet powerful system.
This is a micro-ATX motherboard, comes with solid performance, PCIe 4.0 support, and great compatibility with Ryzen 3000, 4000, and 5000 series CPUs.
In this detailed ASRock B550M-C review, I will showcase its features, performance, pros and cons, and find out whether it’s the right choice or not for your gaming or productivity setup.
So, let’s find out more about this AMD motherboard.
Read also,

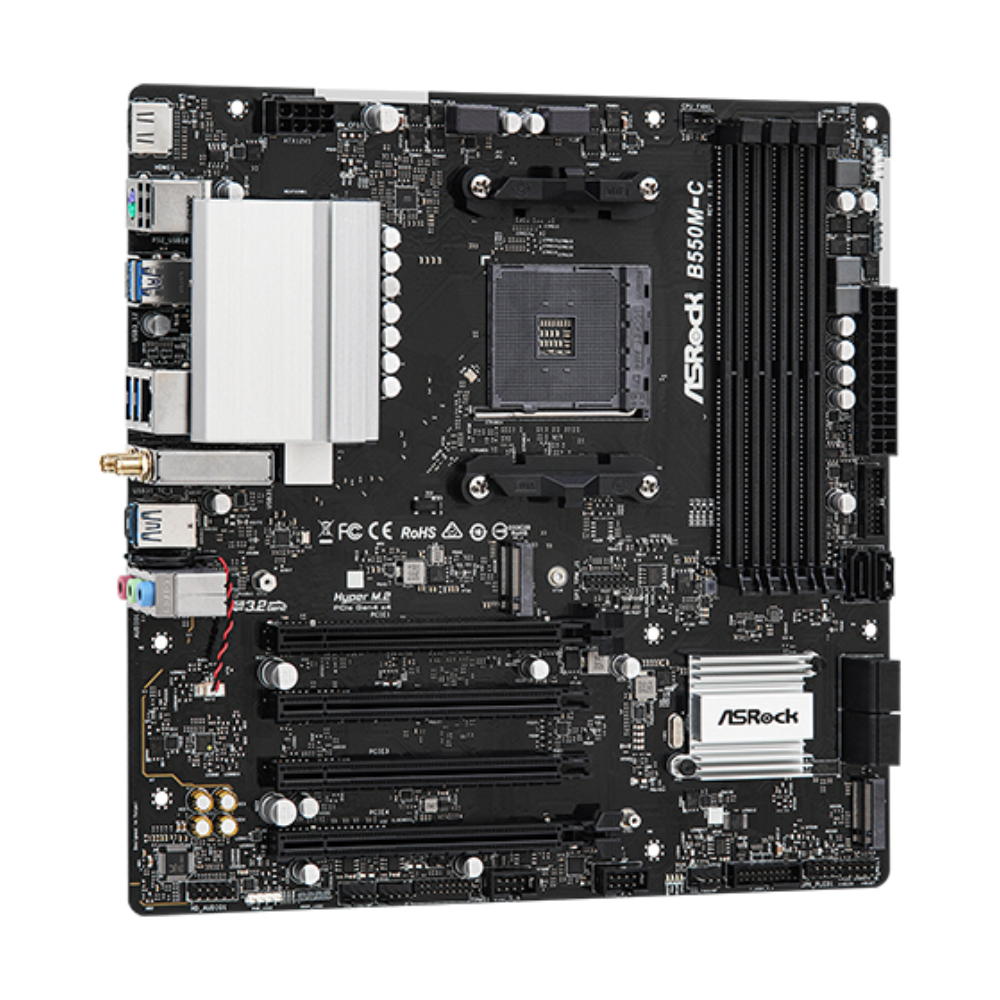

ASROCK B550M-C Review: Specs Overview
| Feature | Specification |
|---|---|
| CPU Support | AMD AM4 socket – compatible with Ryzen 3000, 3000 G‑Series, 4000 G‑Series, 5000 & 5000 G‑Series (excluding Ryzen 5 3400G and 3 3200G) (asrock.com) |
| Power Delivery | 8‑phase Digi‑Power VRM design |
| Memory | 4× DDR4 DIMM (dual-channel), up to DDR4‑4733+ (OC), max 128 GB, 15µ gold contacts; ECC/non‑ECC, XMP support |
| Form Factor | Micro‑ATX (244 × 244 mm) |
| Chipset | AMD B550 |
| PCIe Expansion | 1× PCIe 4.0 x16, 3× PCIe 3.0 x16 slots (low‑speed) |
| Storage Options | 1× PCIe 4.0 M.2 (Hyper M.2 x4), 1× M.2 (PCIe 3.0 x2 / SATA), 6× SATA3 6 Gb/s |
| Graphics Output | HDMI 2.1 (up to 4K60 with APU) |
| Audio | 7.1‑channel HD Audio via Realtek ALC887/897 codec |
| USB Connectivity | Rear: 1× USB 3.2 Gen2 Type‑A, 1× USB 3.2 Gen2 Type‑C; 8× USB 3.2 Gen1; 6× USB 2.0 (front/rear) |
| Networking | Realtek Gigabit LAN (RTL8111H); Intel 802.11ac Wi‑Fi + Bluetooth 5.1 |
| BIOS | 128 Mb AMI UEFI with GUI, multi‑voltage control, POST status LEDs |
| Durability Features | XXL aluminum heatsink, high-density glass fabric PCB, 2 oz copper layers, Full Spike Protection |
| Extras | ASRock Live Update & App Shop, POST Status Checker, robust VRM cooling |

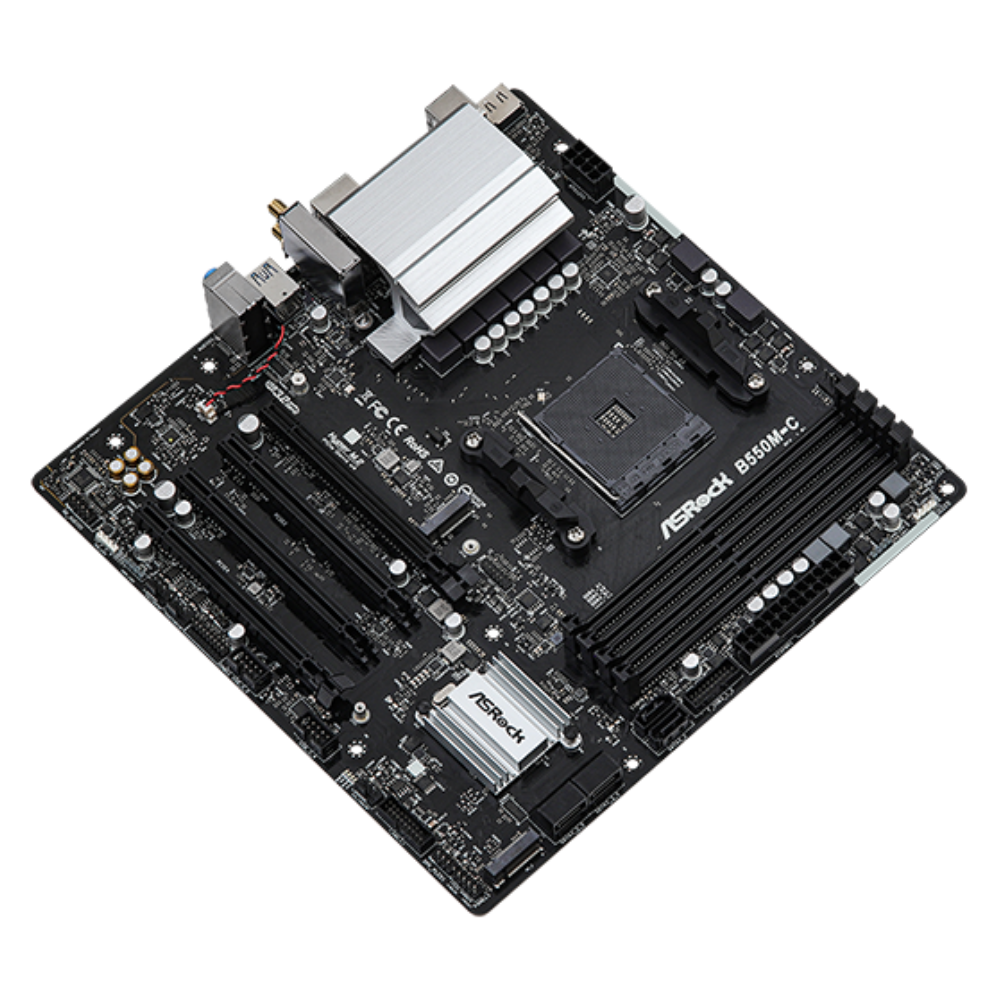

Performance
ASRock B550M-C motherboard doesn’t disappoint you in day-to-day use or even demanding gaming sessions.
I paired it with a Ryzen 5 5600X and noticed right away that it can easily handle multitasking, light video editing, and games like Apex Legends and Cyberpunk 2077 without heating.
Geekbench and 3DMark published benchmark data on this motherboard; According to that benchmark data, this board performs on par with other, more expensive B550 options.
For example, in Geekbench 6, the Ryzen 5 5600X scores around 2170 in single-core and over 9300 in multi-core, which means this motherboard isn’t holding it back at all.
When it comes to gaming, I saw no GPU bottlenecks either.
Whether you’re running an RTX 3060 or even an RX 6700 XT GPU, the PCIe 4.0 support ensures your graphics card is fully utilized.
The third-party testing using 3DMark Sky Diver showed scores in the 7500+ range when paired with a 5600X and RTX 3060. They are really solid numbers for 1080p and even 1440p gaming.
However, one thing I did notice during heavy rendering or stress tests was a bit of heat on the VRMs.
Under sustained loads, temperatures can increase toward 80°C. It’s not so serious for most users, but it’s something to keep in mind. A good airflow or even a small VRM fan can help in that.

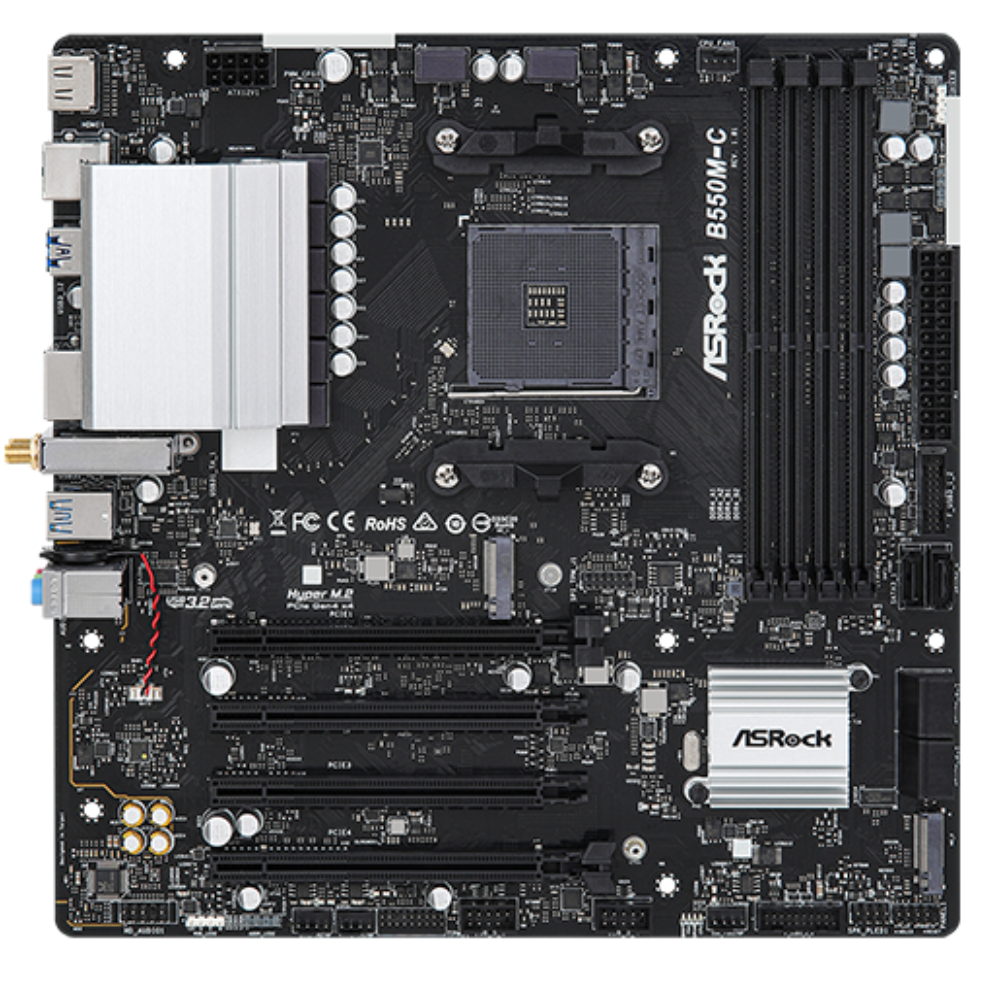

Compatibility
Whether you’re using a Ryzen 3000, 4000G, or 5000 series CPU, this board is always compatible with them.
But to be safe, you should check the BIOS version if you’re using a newer chip like the Ryzen 7 5800X3D.
It supports up to 128GB of DDR4 RAM and runs 3200 MHz modules out of the box. XMP profiles were detected instantly, and everything ran stably.
The PCIe 4.0 slot works flawlessly with NVMe SSD and GPU, and the board even handles dual M.2 drives alongside SATA drive for extra storage.
But remember, Ryzen 5 3400G and Ryzen 3 3200G aren’t supported due to older architecture.
In short, B550M-C motherboard is ideal for both first-time builders and seasoned PC users.
Build Quality
When you unbox the ASRock B550M-C, it feels like a cheap budget board.
However, it has a solid, well-laid-out micro-ATX design with durable components that don’t feel flimsy. The board uses a 2-oz copper PCB, which helps to dissipate heat during long gaming sessions or heavy multitasking.
When you look into the VRM section, you’ll see decent aluminum heatsinks, which is impressive at this price point.
This board comes with high-density glass fabric PCB and full spike protection, which adds a layer of safety against power surges and humidity.
All the connectors, like RAM slots, PCIe, and SATA ports, are firmly soldered. 15μ gold contacts are used on the DIMM slots for longevity.
Gamers, there are no RGB accents or metal-reinforced slots there; even B550M-C nails the basics with confidence.
BIOS Features
BIOS setup screen on the ASRock B550M-C is surprisingly smooth. You can use it easily even if you’re not a tech wizard.
It uses an AMI UEFI BIOS that is clean and easy to use. During setup, I was able to adjust fan curves, enable XMP for my RAM, and even tweak CPU voltages without heading towards the fancy menus.
ASRock gives you both an “EZ Mode” for quick tweaks and an “Advanced Mode” if you want to fine-tune every setting. That’s great and saves time when fast tweaking.
It also includes Instant Flash (for easy BIOS updates via USB) and the ASRock App Shop, which helps you to update drivers and software directly from Windows.
If you’re planning to build your gaming PC with newer Ryzen chips, just make sure your BIOS is updated, especially if you’re buying older stock.
Fortunately, ASRock BIOS makes that process simple.
Pros and Cons
| Pros | Cons |
|---|---|
| Compatible with Ryzen 3000, 4000G, and 5000 series CPUs | No support for older CPUs like Ryzen 5 3400G and Ryzen 3 3200G |
| PCIe 4.0 support for GPU and NVMe SSDs | VRM can get warm under prolonged high loads |
| Sturdy build with 2oz copper PCB and aluminum VRM heatsinks | No RGB lighting or reinforced PCIe slots |
| Easy-to-use UEFI BIOS with XMP, fan controls, and update tools | No Wi-Fi 6E or USB4 on standard version (R2.0 has upgrades) |
| Dual M.2 slots and 6× SATA ports for flexible storage options | Basic aesthetics, not ideal for showpiece builds |
| Affordable price with strong value under $110 | Limited premium features compared to higher-end B550 or X570 boards |
Supported CPUs for ASRock B550M-C
| Architecture | Supported CPU Series | Notes |
|---|---|---|
| Zen 2 (3000 Series) | Ryzen 5 3600, 3600XRyzen 7 3700X, 3800XRyzen 9 3900X, 3950X | Fully supported with PCIe 4.0 support |
| Zen 2 (3000 G-Series) | Not supported – Ryzen 5 3400G, Ryzen 3 3200G | Based on older Zen+ architecture – incompatible |
| Zen 2 (4000 G-Series) | Ryzen 3 4300GRyzen 5 4600GRyzen 7 4700G | Supported with integrated Radeon Graphics |
| Zen 3 (5000 Series) | Ryzen 5 5500, 5600, 5600XRyzen 7 5700X, 5800X, 5800X3DRyzen 9 5900X, 5950X | BIOS update may be needed for some CPUs (check version) |
| Zen 3 (5000 G-Series) | Ryzen 3 5300GRyzen 5 5600GRyzen 7 5700G | Fully supported with integrated graphics (Radeon Vega) |
My Verdict
ASRock B550M-C is a smart choice if you’re building a budget-friendly Ryzen system and want reliable performance without overpaying. It gives you what really matters; PCIe 4.0 support, dual M.2 slots, wide CPU compatibility, and a stable BIOS.
During testing, I found it handles everyday tasks like gaming, and light content creation with ease, especially when paired with CPUs like the Ryzen 5 5600X or Ryzen 7 5700X.
So, whether you’re building your first AMD PC or upgrading an older setup, this board can be a strong contender for your list.
However, it’s not loaded with RGB lighting or premium looks. Also, the VRM cooling isn’t built for heavy overclocking, but if you can set up a good airflow and a reasonable CPU, you’ll be just fine.
So, in my opinion, if you want a simple B550 motherboard that won’t break your bank, the ASRock B550M-C delivers excellent value for your money.
